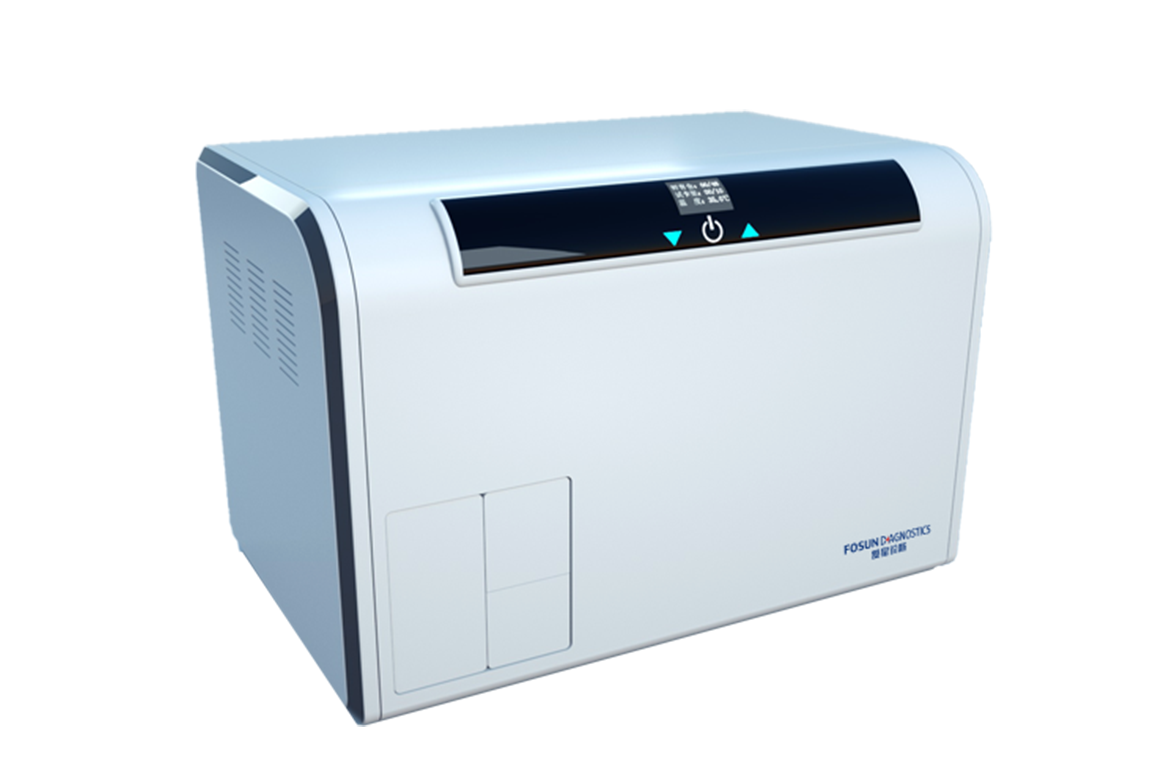

Nephelometer

NMPA Record No.:	HBXB No. 20210128
Instrument Functions:	It is Applicable for microbial turbidity tests and can detect the McFarland and transmittance of the liquid to be tested
Detection Range:	The detection range of transmittance is 0–100%, and the detection range of McFarland is 0–5 McFarland standard

Product Features

Peculiarity

Accurate and stable

01

Calibration curve with high precision to support multi-point calibration

The detection reagent is stored in a transparent glass tube with no inter-vial difference for reagent

With high brightness LEDs (590 nm), a major light source for turbidity tests, stable and reliable

Safe and simple

02

Small-sized that can be placed in the safety cabinet

It is touch-controlled by just clicking the screen

Comprehensive supporting facilities

03

Equipped with McFarland turbidimetric tubes of multiple concentrations and separate normal saline tubes, eliminating the need for self-preparation of reagents

Double tests

04

Free switch between turbidity test with McFarland standard and transmittance test

Technical Parameters

Parameters

S/N	Item	Parameter
1	Input power	1.5VA
2	Net weight (excluding power adapter)	0.4kg
3	Light Source	High brightness LED (590 nm)
4	Accuracy of Reading	The precision of E. coli standard strain ATCC25922 is ± 0.1 at a turbidity of 0.5McF
5	Noise	<50dB
6	Waterproof Grade	IPX0
7	Determination Range	0.1–5 McF, the precision of McF ±0.1, and the precision of transmittance percentage ±1.5%
8	Display	With a color LCD touch screen and double display of McF/transmittance
9	Calibration	1. One-click calibration; 2. Automatic calibration for temperature control and compensation
10	Supporting Activities	A set of standard turbidimetric tubes is provided for free
